Database

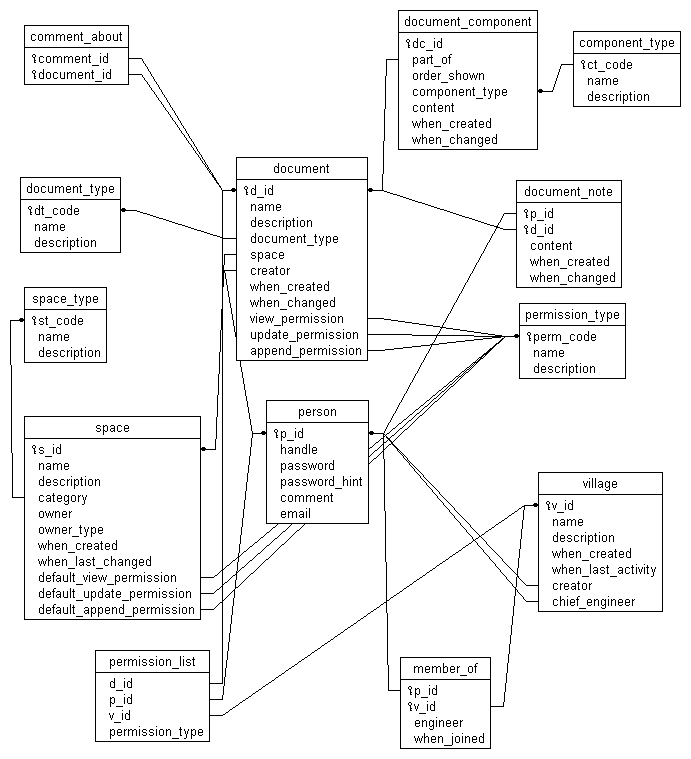

This page is for the database underlying the county. It's in MySQL. Here is the ERD:

This was created in MyERD (see the tools page to get it). You can download the file for the ER diagram in MyERD format.

Notes:

1. The content field in document_component contains an XML representation of the the content. We still need to set the XML standards for each document type.
2. A space is either a room or a public area in a village.
3. Spaces are owned by either a person or a village. owner_type specifies which.
4. In permission_lists, either p_id or v_id is specified. The other is null.
5. When a comment is created, its initial view permissions are copied from the document to which it applies.

Contact Kieran Mathieson (mathieso@oakland.edu) with questions or comments.
